Descriptors and Builders ​

The Vyuh framework provides an extensible architecture for building large-scale apps using a CMS (or other content source) to drive the experience. To support this extensibility, two concepts appear throughout the framework: Descriptors and Builders. Let's understand why they are required and what purpose they serve.

A Vyuh app is a collection of features, where each feature is an independent unit of functionality that exposes components and routes. When not using a CMS, routes alone are sufficient to stitch together user journeys. The full benefit, however, comes from using a CMS to drive the entire experience.

Harvesting Content ​

Content in a CMS-driven system has two counterparts. One resides on the CMS, where it is exposed as a schema block used in the CMS Studio. The other is the Flutter-side widget that renders this content. The connecting glue is the framework, which converts the JSON from the CMS into a Flutter widget.

Descriptors ​

Since an app can have many features, there must be a way to describe each feature's content so the framework can understand and render it. A descriptor is exactly this: a structured description of content. Common descriptors include FeatureDescriptor (describes the feature), ContentDescriptor (describes the content), and ExtensionDescriptor (describes framework extensions).

Every feature declares its contribution to the app using a FeatureDescriptor and its content using ContentDescriptor instances. Descriptors are content-specific because each content type has its own set of properties.

Descriptors define the schemas for the CMS and have a counterpart in Flutter. The Flutter-side descriptor primarily converts from the JSON schema of the content to a Widget.

A Concrete Example ​

To see how the CMS and Flutter sides connect, consider a ProductCard content type. On the CMS, you define a schema that determines what content editors see in the Studio:

typescript
// CMS Schema - defines what content editors see
export const productCard = defineType({
  name: 'shop.productCard',
  title: 'Product Card',
  type: 'object',
  fields: [
    defineField({ name: 'title', type: 'string' }),
    defineField({ name: 'price', type: 'number' }),
    defineField({ name: 'image', type: 'image' }),
  ],
});

On the Flutter side, you create a corresponding ContentItem that deserializes the CMS JSON into a Dart object. The TypeDescriptor registers this content type with the framework using the same schemaType string:

dart
// Flutter ContentItem - deserializes CMS JSON
@JsonSerializable(createToJson: false)
final class ProductCard extends ContentItem {
  static const schemaName = 'shop.productCard';
  static final typeDescriptor = TypeDescriptor(
    schemaType: schemaName,
    title: 'Product Card',
    fromJson: ProductCard.fromJson,
  );

  final String title;
  final double price;
  final ImageReference? image;

  ProductCard({
    required this.title,
    required this.price,
    this.image,
    super.layout,
  }) : super(schemaType: schemaName);

  factory ProductCard.fromJson(Map<String, dynamic> json) =>
      _$ProductCardFromJson(json);
}

The schemaName value ('shop.productCard') is the key that ties the CMS schema to the Flutter content item. The @JsonSerializable annotation and the _$ProductCardFromJson factory are part of the json_serializable package. The generated .g.dart files are produced by running:

shell
dart run build_runner build

Builders ​

Describing the feature is one half of the story. The other half is collecting all these descriptors across every feature and assembling an app from them. This is where the Builder comes in. A builder is a class that works with a specific descriptor type and collects instances of it across all features. For example, for every ContentDescriptor, there is a corresponding ContentBuilder that gathers the descriptors and assembles them. Descriptors and builders are type-safe to ensure they work together correctly.

At runtime, the framework uses the various builders to render content. Each builder exposes a build() method that takes a BuildContext and a content instance and produces a Flutter Widget:

dart
abstract class ContentBuilder {
  // Rest of the class definition...

  /// Builds the content into a Flutter Widget
  ///
  /// The [content] is the instance of the content that needs to be rendered.
  Widget build(BuildContext context, ContentItem content);
}

Assemble and Render ​

Once descriptors and builders are in place, the framework can orchestrate the rendering of content. When a new page is fetched from the CMS, the framework identifies the correct builder for each content type and renders it. Builders are maintained in a type-safe registry, indexed by schema name for efficient lookup.

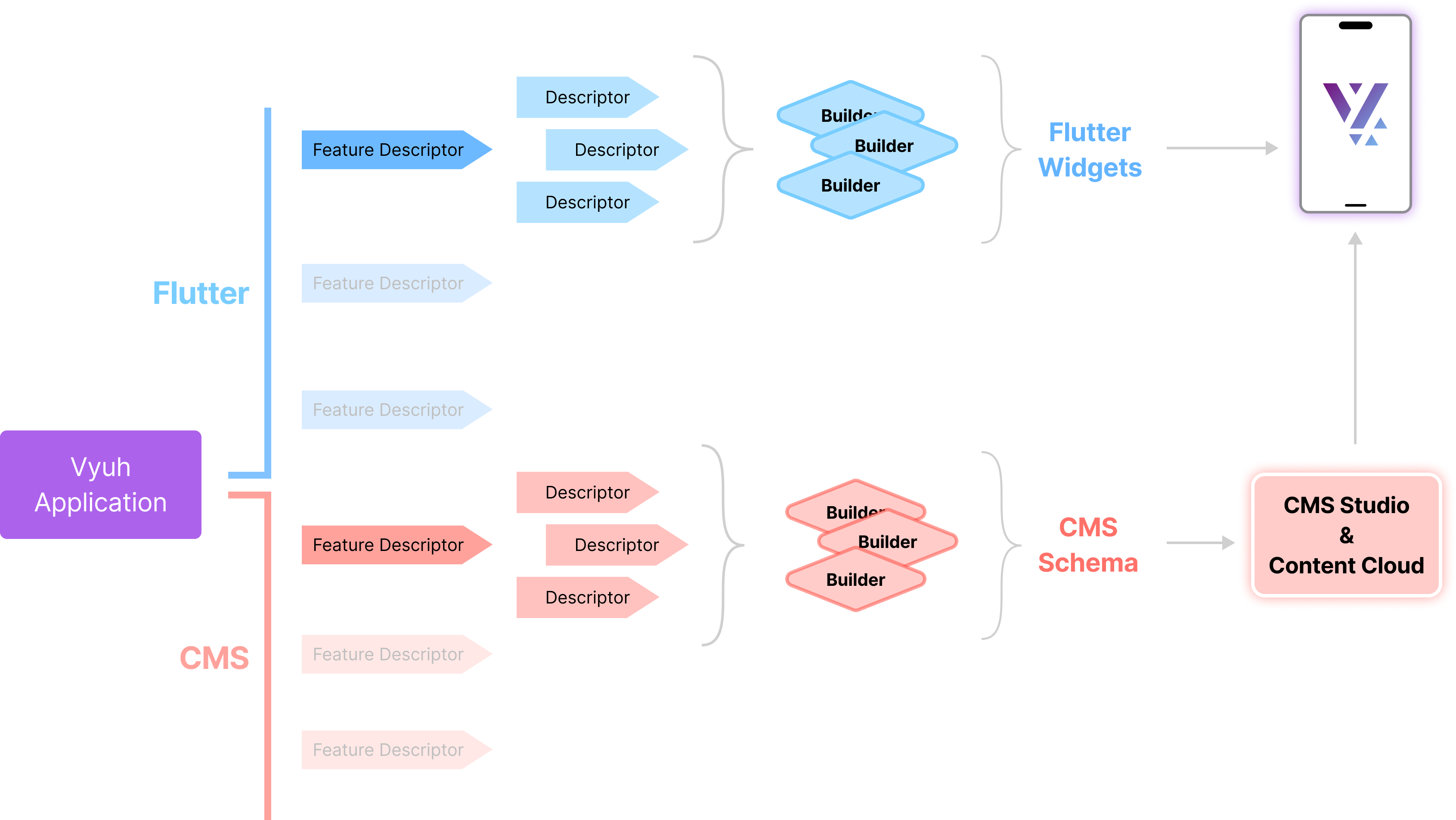

Descriptors and Builders

From the framework's perspective, even the page itself is a content type with its own builder. The process works recursively down into the items of the page. The framework performs error checking, validation, and provides debug hints to ensure correct implementation.

  • Content Types -- define and register custom content types
  • Layouts -- create layout builders for your content
